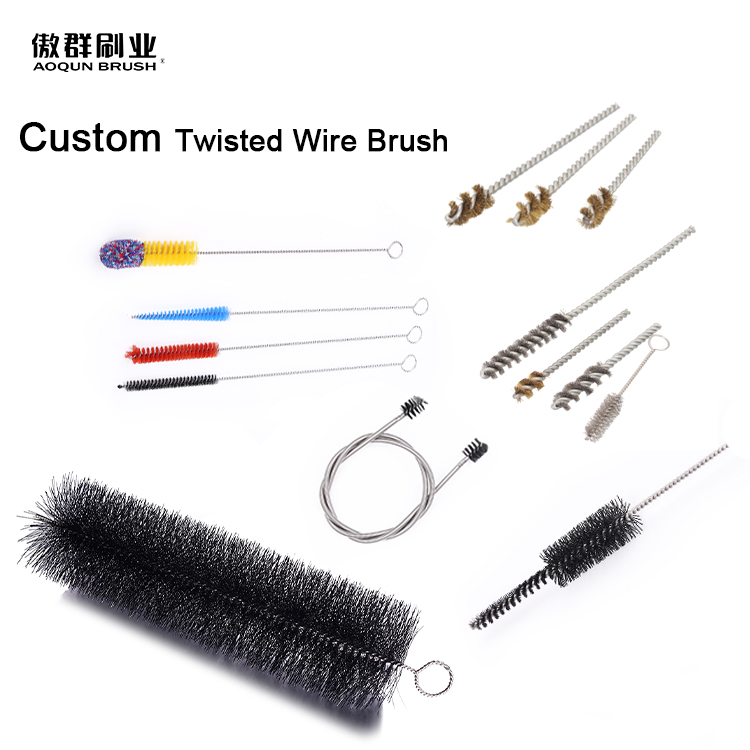

Custom Twisted Wire Brush

Twisted wire brushes can be made into brushes for different purposes. Some customers call it filter brushes,tube brushes, bottle brushes, twisted-pair wire brushes, rotating twisted wire brushes and internal cleaning brushes for tools.
Description


Custom Twisted Wire Brush


Twisted wire brushes can be made into brushes for different purposes. Some customers call it filter brushes,
tube brushes, bottle brushes, twisted-pair wire brushes, rotating twisted wire brushes and internal cleaning
brushes
for tools. The application of the twisted wire brush is different, and the materials used are very
different. Twisted wire brushes filaments are steel wire, copper wire, abrasive wire, pig, horse and sheep
animal hair, nylon wire and plant filament. The materials used for stranded wire are stainless steel wire,
steel wire and iron wire. The material of the handle includes plastic, wooden handle, rubber cover, spring,
and it can also be directly twisted and wound.

Custom Twisted Wire Brush

Ⅰ. Twisted Brush End Type/Handle Process



The handle of the twisted wire brush has different treatment methods according to the application and
structure of the brush. Twisted wire brush designed by AOQUN BRUSH is used in manual cleaning and
electric drill industry. Each industry uses different filaments, such as nylon, brass wire, stainless steel
wire and other filaments. The following shows the commonly used handles:


Twisted Brush End Type



Ⅱ. Twisted Wire Brush Tip Styles/ Head Styles


The production of the twisted wire brush tip depends on the stem structure of the brush and the application
of the brush. Common ways include continuous end, cut end, plastic tip, tied tuft tip, loop tip, etc.
The following are common treatment methods :


Twisted Wire Brush Tip Styles


Ⅲ. Application of Twisted Wire Brush:


▪ Cleaning internal tubing, piping and cylinders
▪ Cleaning medical devices and equipment
▪ Cleaning laboratory equipment and beakers
▪ Cleaning hydraulic fittings and nozzles
▪ Cleaning shotguns, pistols and rifles
▪ Whisper light brushes for clean electronic and computer components
▪ De-burring machined and threaded holes in castings, tanks and machined parts
▪ Removing gases during vacuum distillation process
▪ Removing water bubbles in air fluid control
▪ Cleaning refrigerator coils
▪ Cleaning valve guides
▪ Cleaning automotive and plane parts



Please e-mail us more details like followed brush parameters or pictures so that
we can customize a perfect type of Twisted Wire Brush.

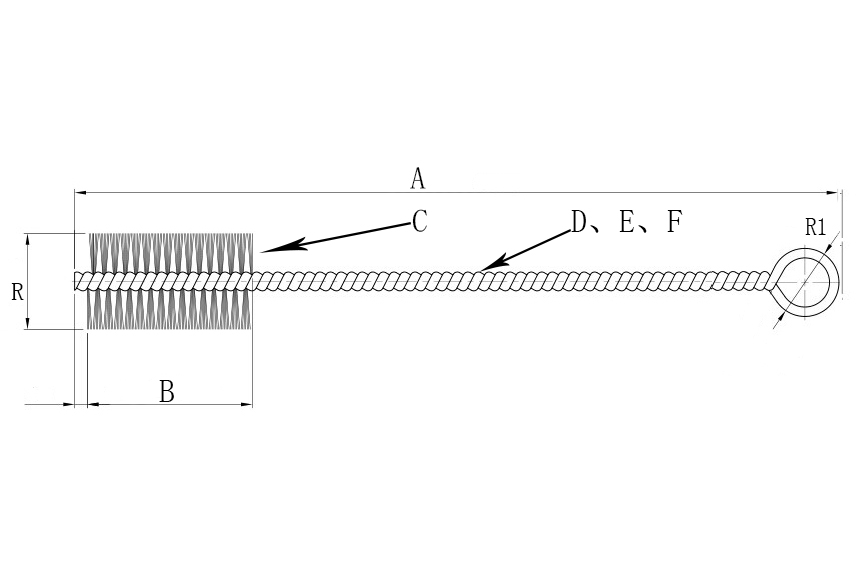

Ⅳ. Brush Parameters


• Overall Length: A
• Brush Diameter: R
• Length of Brush Part: B
• Brush Fill Material: C
• Filament Diameter:(as you request)
• Stem Diameter: D
• Stem Material :
• Brush Construction: F(single spiral,single stem/ single spiral,double stem/ double spiral,double stem)
• Loop Diameter: R1
• Tip Style: continuous end, cut end, plastic tip, tied tuft tip, loop tip, etc.
• Shank Options: plastic handle,wooden handle,cut end,ring handle,etc.
